Our Digital pressure and temperature logger system is applicable to different kinds of bottles which require pressure resistance.

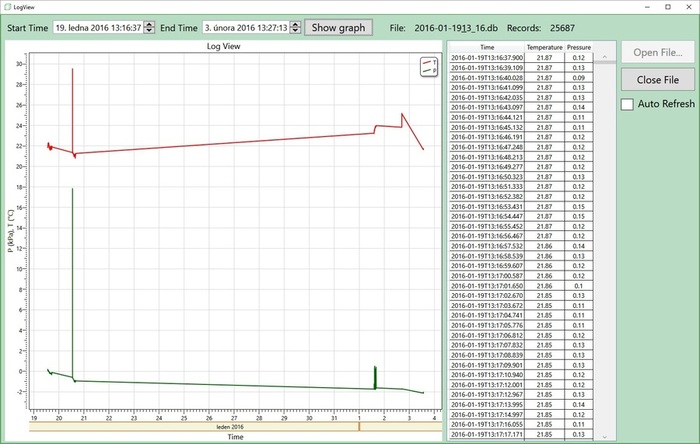

Measured pressure and temperature are recorded in internal memory and, at the same time, sent via USB. The measurement period can be adjusted from 1 second to 24 hours. The logger can be used as stand-alone recorder. Recorded data are then transferred to PC for evaluation. It can also be used with a PC connected to it, thus allowing longer logging sessions with direct visualization of curves.

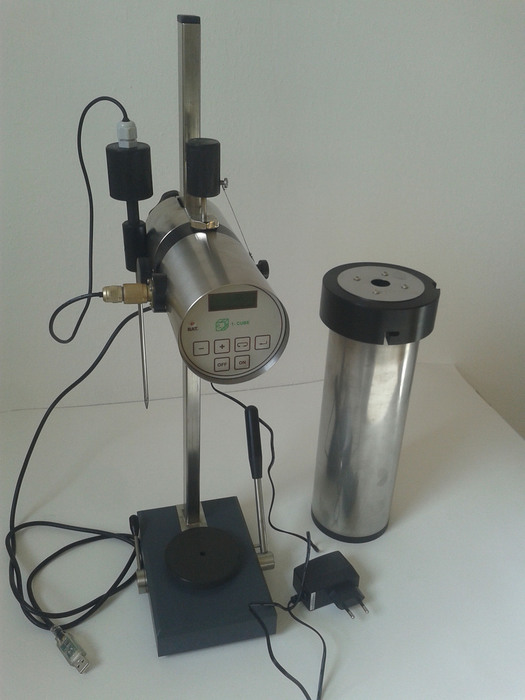

The instrument consists of a device stand, a protective container with cover, a lifting mechanism, a piercing needle, a microcomputer with keyboard and display, pressure and temperature sensors, USB cable for data transfer to PC and software for PC.
Consists of the measuring device, AC/DC adapter, a protective container with cover, USB cable for data transfer to PC, Windows software and user’s guide.
DIGITAL PRESSURE AND TEMPERATURE LOGGER SYSTEM FOR BOTTLES TYPE ICD-Log
