Syringe pump

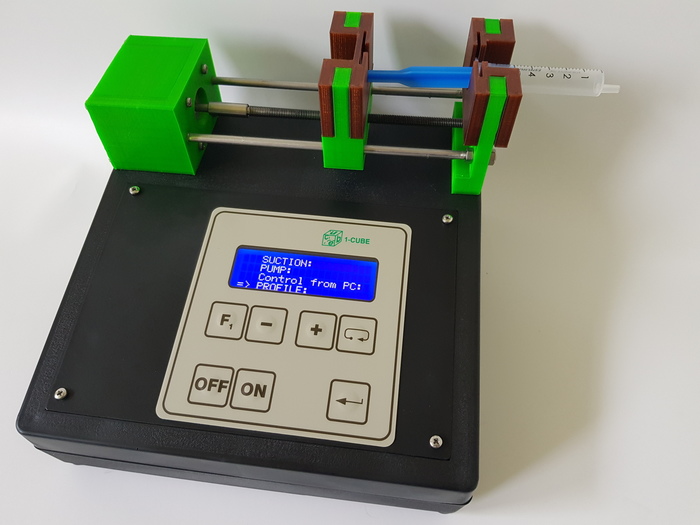

The 1-CUBE syringe pump is a programmable single channel infusion / withdrawal syringe pump. It has a plastic casing to provide stability, ensuring less vibration is transferred to the syringes. Setup is easy using the instruments keypad or via a computer with optional RS232/USB cable.
The "Profile" method allows the user to program up to 7 pumping phases defined by times and dosing volumes. It can be set flow rates, set dispensing volumes, insert pauses, sound the buzzer.
The 1-CUBE syringe pump can even function as a peristaltic pump with two optional check valves.
Features:
Holds one syringe from 1 μl to 50 ml
Flow rate from 0.002 μl/min to 65 ml/min
LCD display with membrane keypad
Easy syringe pump replacement
Advanced microstepping techniques
Built in RS232/USB interface
4 different working modes: Infusion, withdrawal, infusion/withdrawal, withdrawal/infusion, continuous
Peristaltic pump function
Operation even without electric current from the battery
Very precise, reproducible flow rate control
Program pump via keypad or from a computer
Highly controllable – program sequences without a computer
Specification:
Syringes (Min/Max): 1 μl to 50ml
Flow rate: from 0.002 μl/min to 65 ml/min
Linear Force (Max): 15 kg
Accuracy: ±0.5%
Connectors: RS232/USB
Power: 100-240 VAC: 50/60 Hz, 50 W, 1 A fuse
Dimensions: 23x23x13 cm
Weight: 2,5 kg
Operating Temperature: 4 degree C to 40 degree C
Humidity: 20% to 80% RH non condensing
Example flow rates:
|
Syringe Size |
Maximum Rate |
Minimum Rate |
|
1 µl |
10 µl/min |
0.002 µl/min |
|
1 ml |
15 ml/min |
0.002 ml/min |
|
2 ml |
30 ml/min |
0,004 ml/min |
|
5 ml |
40 ml/min |
0,005 ml/min |
|
10 ml |
65 ml/min |
0,01 ml/min |
|
20 ml |
65 ml/min |
0,02 ml/min |
|
50 ml |
65 ml/min |
0,05 ml/min |
Note: When ordering, specify the type and size of the syringe.
